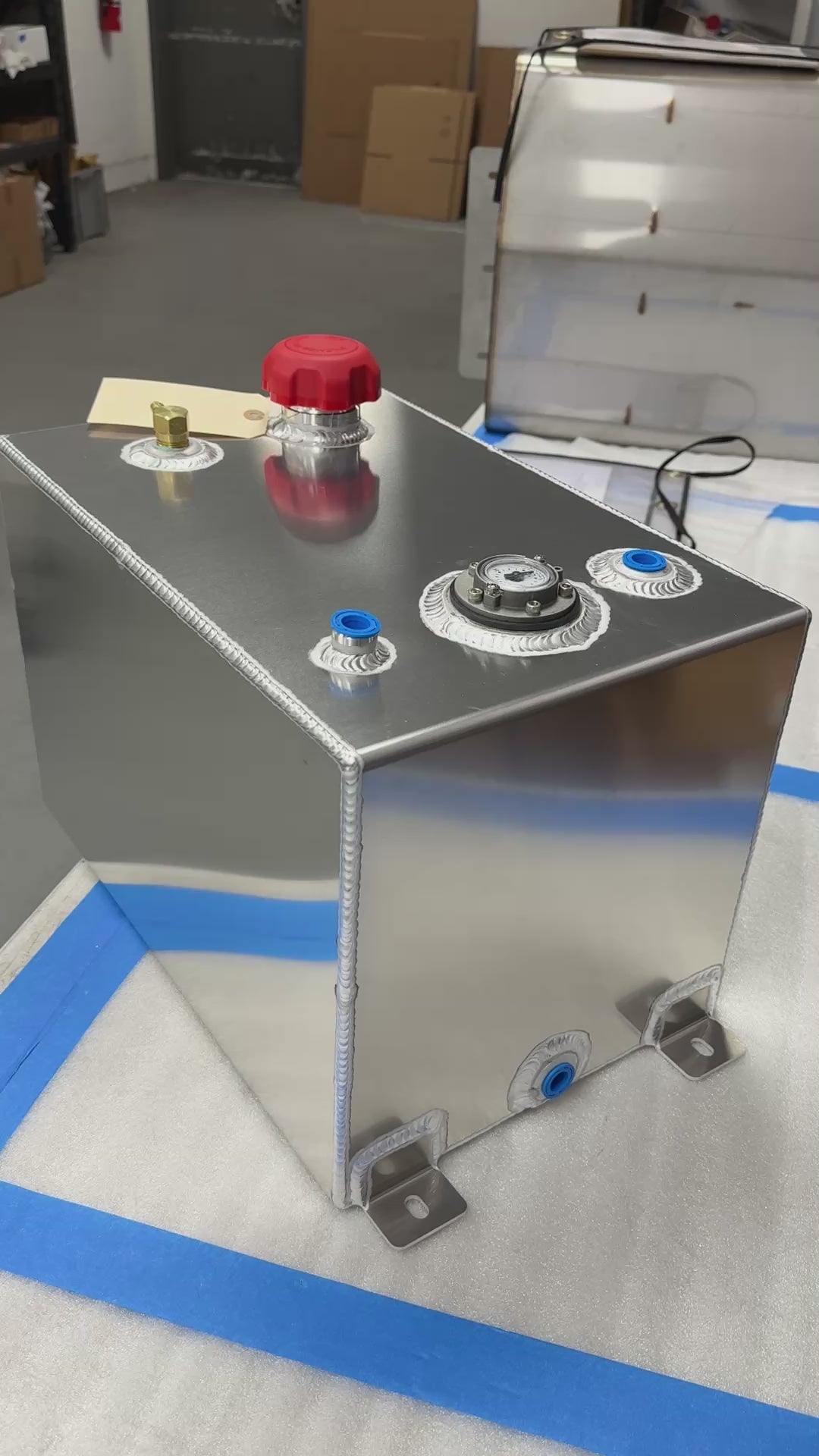

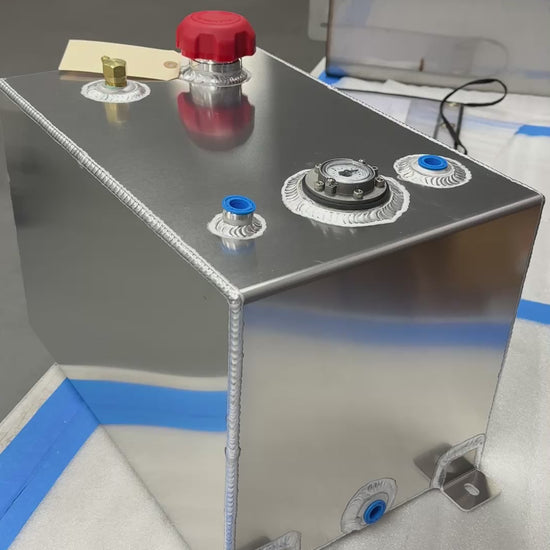

Constructed from 1/8" thick 5052 mill aluminum, this 11-gallon tank measures 18" long, 12" wide, and 12" high, with a 21" x 12" footprint and overall height of 14" including the fill cap. It includes one 3/8" NPT pickup tube standard, with the option to add more for tailored fuel delivery. Venting is provided via a 1/2" NPT port, and 3/8" NPT fittings are incorporated for draw, return, and drain functions. A sending unit flange is included, and four mounting tabs (1.5" x 2" long) ensure secure installation. Threaded fittings, plugs, and hardware are required separately to complete the setup.
Tank Dimensions: 18"L x 12"W x 12"H
Tank Footprint:21" x 12"
Tank Overall Height W/CAP:14" Tank Thickness: 1/8" Material Grade: 5052 Mill Aluminum Approx Weight: 17 lbs Tank Baffles:no
Fill Cap: BASED ON SELECTION Vent: 1/2" NPT Draw:3/8" NPT Pickup Tube Return: 3/8" NPT Drain: 3/8" NPT Sending Unit Flange: Yes Mounting Tabs: (4) 1.5 x 2" Long

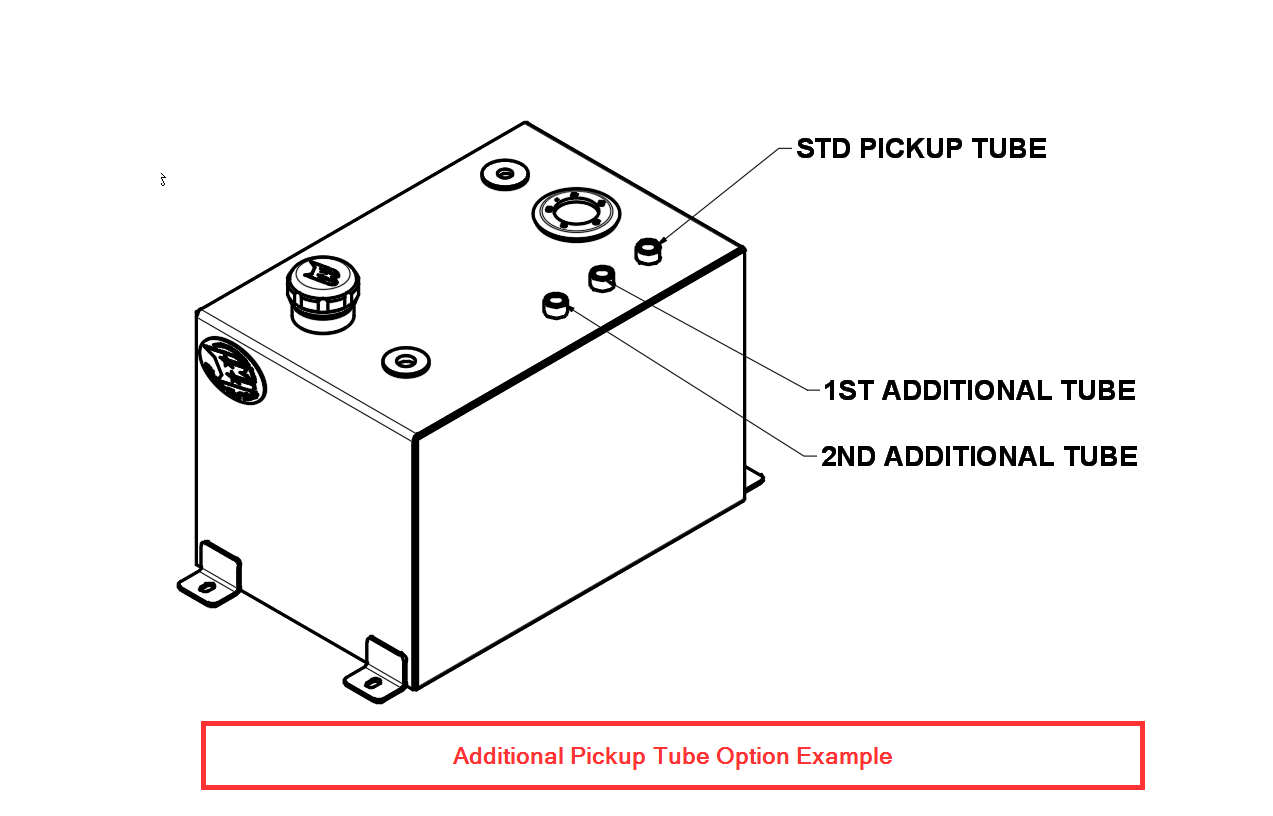

Download Reference Drawing HereThis tank comes standard with 1 pickup tube installed. You can add ADDITIONAL pickup tubes via the option drop downs. If you don't need additional pickup tubes then you choose "no additional pickup tube"You will need to supply all threaded fittings, plugs and hardware to complete your install based on your unique application.
