Stainless Steel 11 Gallon 18x12x12 Tank
Stainless Steel 11 Gallon 18x12x12 Tank
Availability : Ships in 2-4 Weeks or Less
SKU:11010-SS
Couldn't load pickup availability

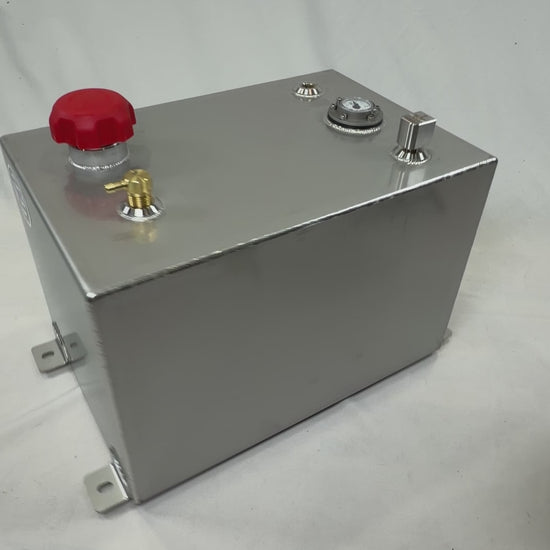

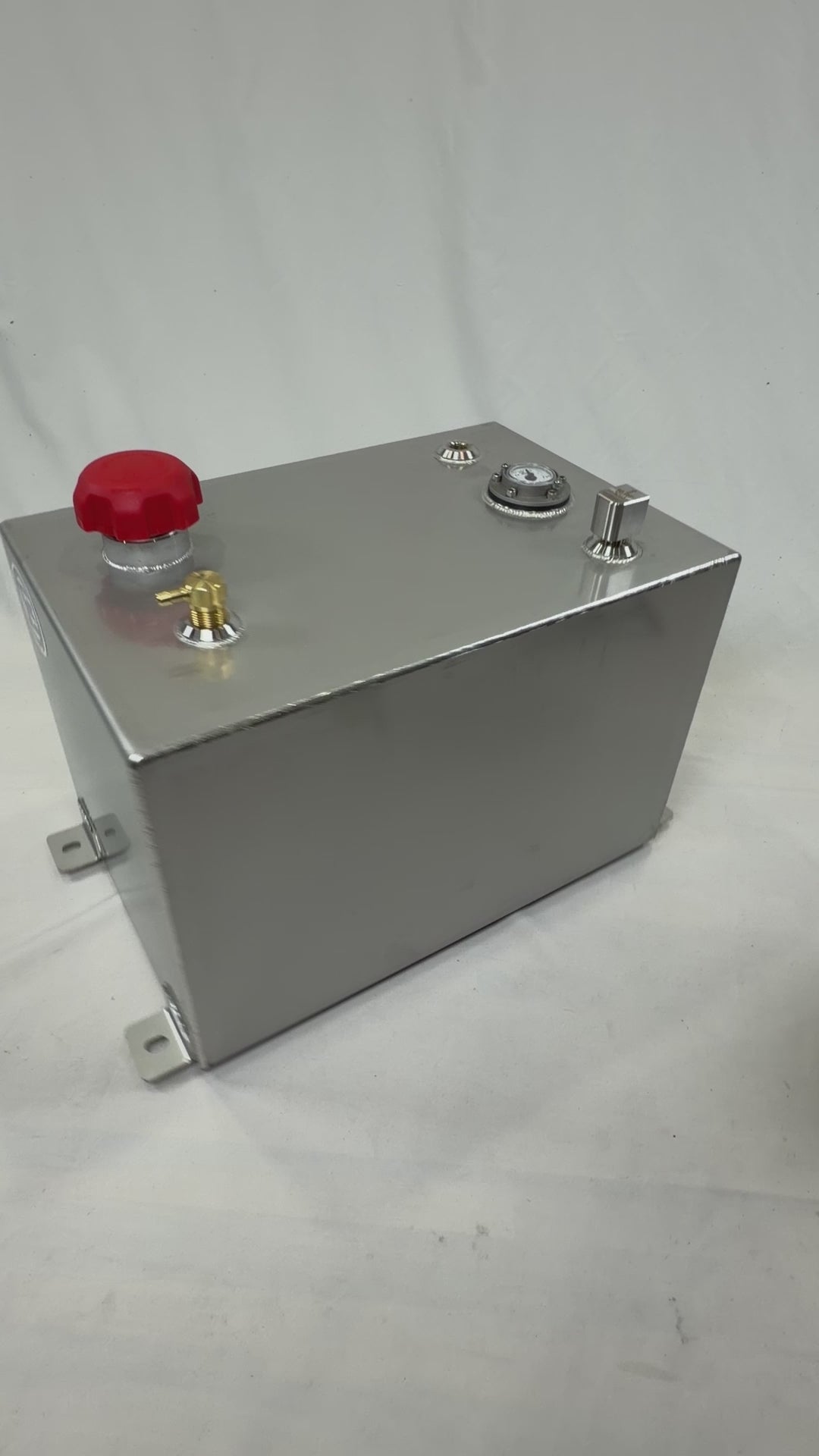

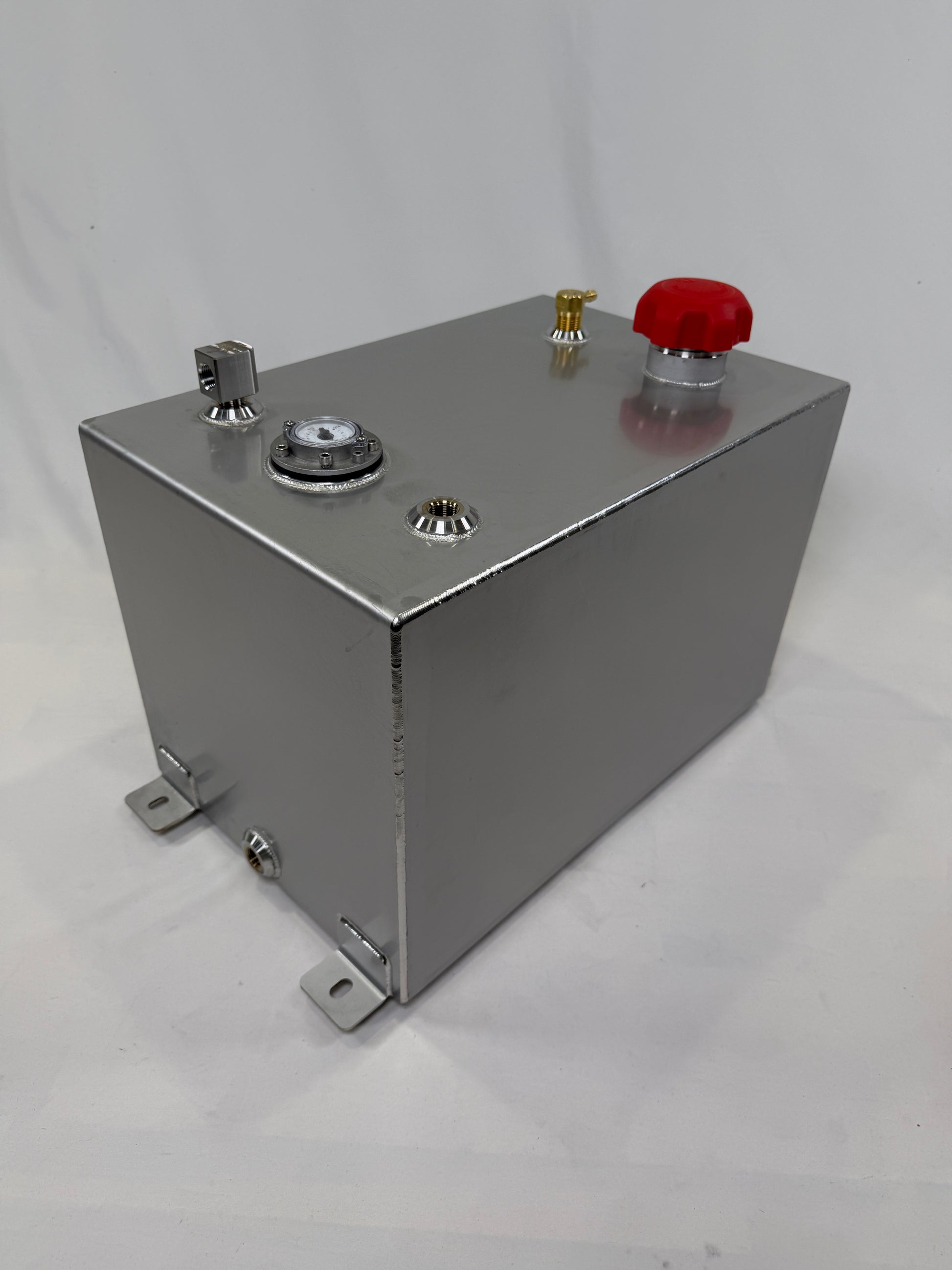

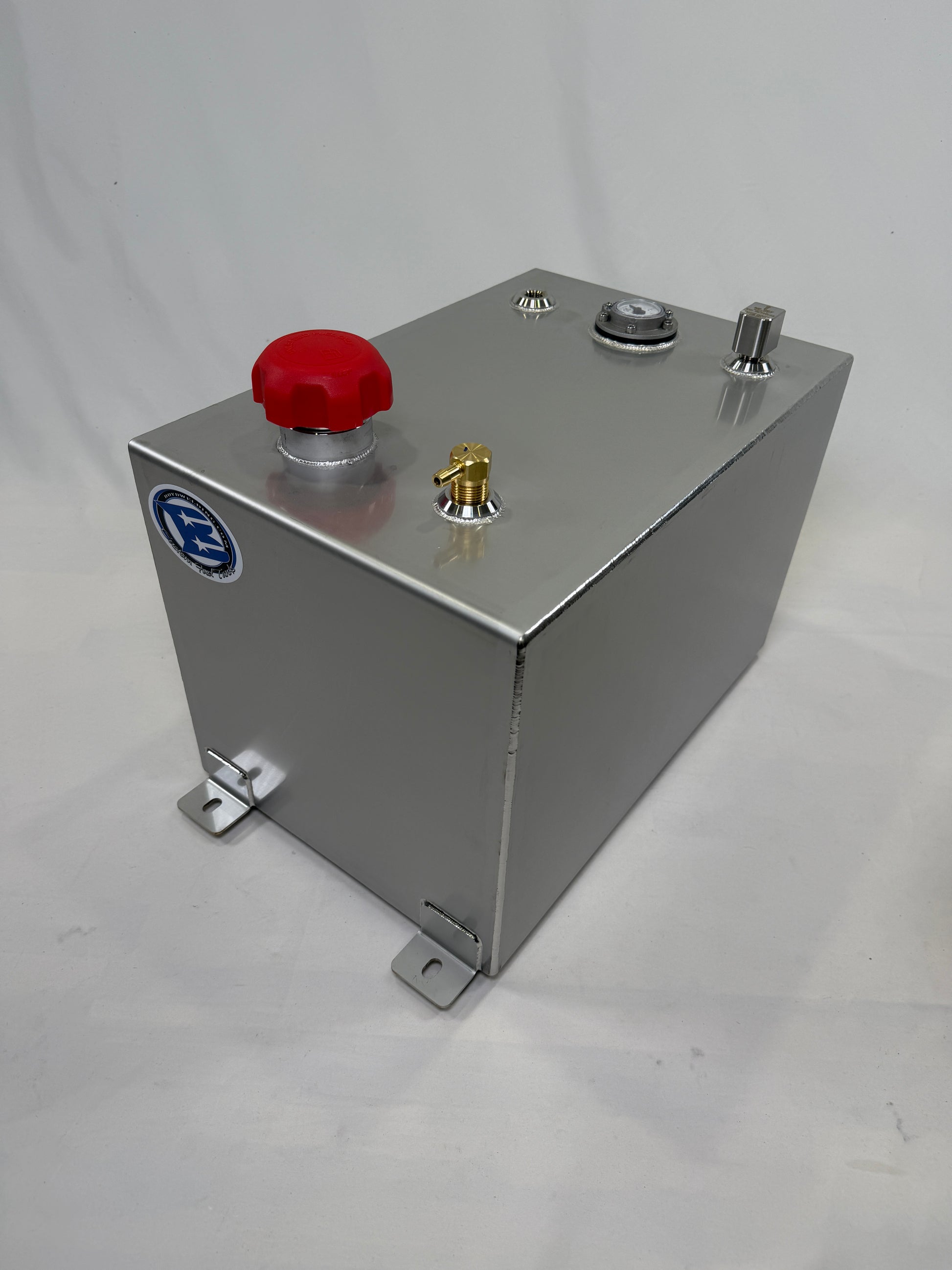

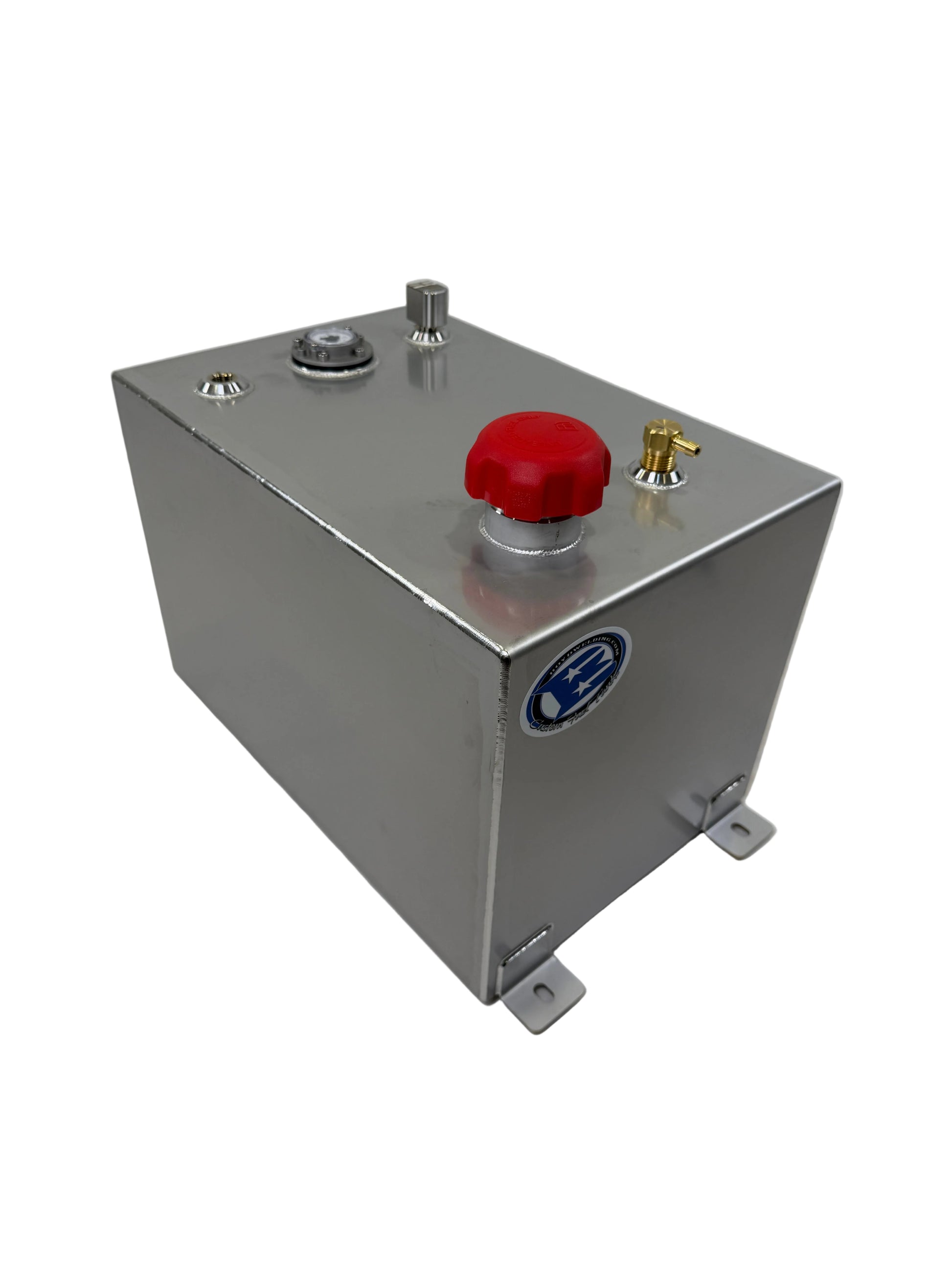

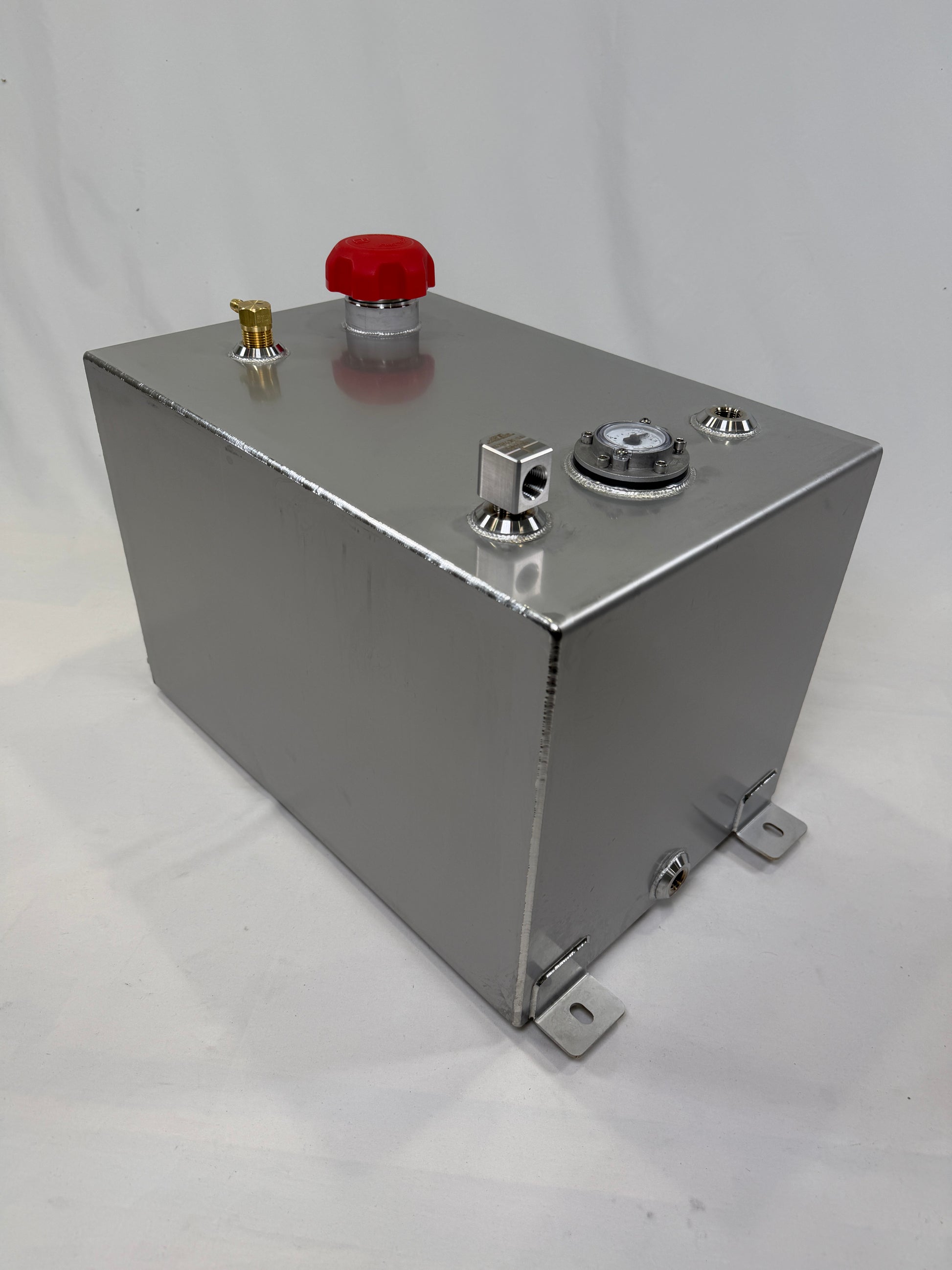

11-Gallon Universal Stainless Steel Fuel Tank, 18" x 12" x 12" (#11010-SS)
A simple, unbaffled 11-gallon universal tank built from 12-gauge 304L stainless steel, with a top-mount sender flange, one installed stainless pickup tube, and 3/8" NPT return and drain ports. You choose the fill cap, level sensor and extra pickup tubes at checkout.
Technical Specifications
- Product number: 11010-SS
- Capacity: 11 gallons
- Body dimensions: 18" L x 12" W x 12" H
- Footprint: 21" x 12" including mounting tabs
- Height with cap: 14.5" max
- Material and thickness: 304L stainless steel, 2B finish, 12 gauge (0.109")
- Baffles: None
- Weld fittings: Machined 304L stainless flanged fittings
- Fill: 225 Series neck
- Vent: 1/2" NPT
- Sender provision: 5-bolt SAE flange
- Pickup / draw: 3/8" NPT
- Return: 3/8" NPT
- Drain: 3/8" NPT port, low on the end wall
- Mounting: Four 0.109" stainless angle tabs, 1.5" x 1.5" x 2", with slots for 3/8" hardware; slot centers 19.61" x 9.00"
- Dry weight: 25 lb (approx.)
- Pressure test: Fully pressure tested (5–8 psi) and inspected
- Fuel: Gasoline or diesel. Choose a cap rated for your fuel.
- Warranty: 2-year limited structural warranty
- Custom / modified tanks: 5–10 piece order required (no single-tank changes)
- Bulk pricing: available from 10 pieces
Tank Options & Provisions
Fill (Tank Cap / Neck Option)
225 Series neck on top, at the opposite end from the sender flange. Choose the cap at checkout, rated for your fuel. All tanks must be vented to work properly. With a non-vented cap, vent the tank through a port or use a managed vent cap. Open vented caps will leak.
- #81060-NV-GRN Boyd 225 Series Green NON Vented Cap (Diesel Fuel Only)
- #81053 Kelch Ratchet 225 Series Managed Vent Cap RED (Unleaded Fuel Only)
- #81054 Kelch 225 Series Comfort Grip Open Vent Black (Diesel Fuel Only)
Vent
1/2" NPT machined 304L stainless flanged port on top, next to the fill. Plumb it to a vapor canister or filter.
Sending Unit (Level Sensor Option)
Stainless 5-bolt SAE sender flange on top. A sensor or the block-off plate is required to use the tank; have us install one or install your own.
- No Sensor - Flange Only
- Install 0-90 OHM Sensor
- Install 240-33 OHM Sensor
- Install Mechanical Gauge
- Install #33004 Flange Block Off Kit
Pickup (Pickup Tube Options)
One #25021 stainless pickup tube is installed in a 3/8" NPT port on top, with a 3/8" female NPT 90° head (0.312" ID). One is all you need unless you're running multiple engines. The drawing shows where extra tubes are placed.
- No Thanks- 1 pickup tube is all I need.
- Install (1) Additional Pickup Tube (2 Pickups Total)
- Install (2) Additional Pickup Tubes (3 Pickups Total)
- Install (3) Additional Pickup Tubes (4 Pickups Total)
Return
3/8" NPT machined 304L stainless flanged port on top, beside the sender flange.
Included
- Tank with one #25021 stainless pickup tube installed
- Fill cap and sender option as selected at checkout
Not Included
- Final threaded fittings, plugs and mounting hardware for your install (we do not sell these)
Install Notes
- The tank must be vented. Open vented caps will leak. With a non-vented cap, vent through the 1/2" NPT port or use a managed vent cap, and plumb the vent to a vapor canister or filter.
- A sensor or the block-off kit must be installed on the sender flange before the tank is used.
- Stainless threads cross-thread and gall easily. Start every plug and fitting by hand and never install them dry. Thread damage from dry-fitted plugs or hardware is not covered under warranty.
- Measure your application before ordering. Full dimensions and port locations are on the reference drawing (PDF).
- Put rubber isolator pads (or similar rubber isolation) under the mounting tabs to isolate the tank from vibration and chafe.
- See our Universal Fuel Tank Selection, Install & Fitment Guide to compare sizes, ports, venting, mounting and level sensors.
FAQ
Can I feed more than one engine from this tank?
Yes. Add up to 3 extra pickup tubes (4 total) at checkout. The drawing shows where they are placed.
Can you modify this tank or build a custom one?
Yes, but not for a single tank. We can't make any changes for a one-tank order. Custom or modified tanks require a 5–10 piece order, and drawing fees usually apply. Contact us for more information.
Do you offer bulk pricing?
Yes. Bulk pricing and discounts are available on larger orders, starting as low as 10 pieces. Contact us for a quote.
