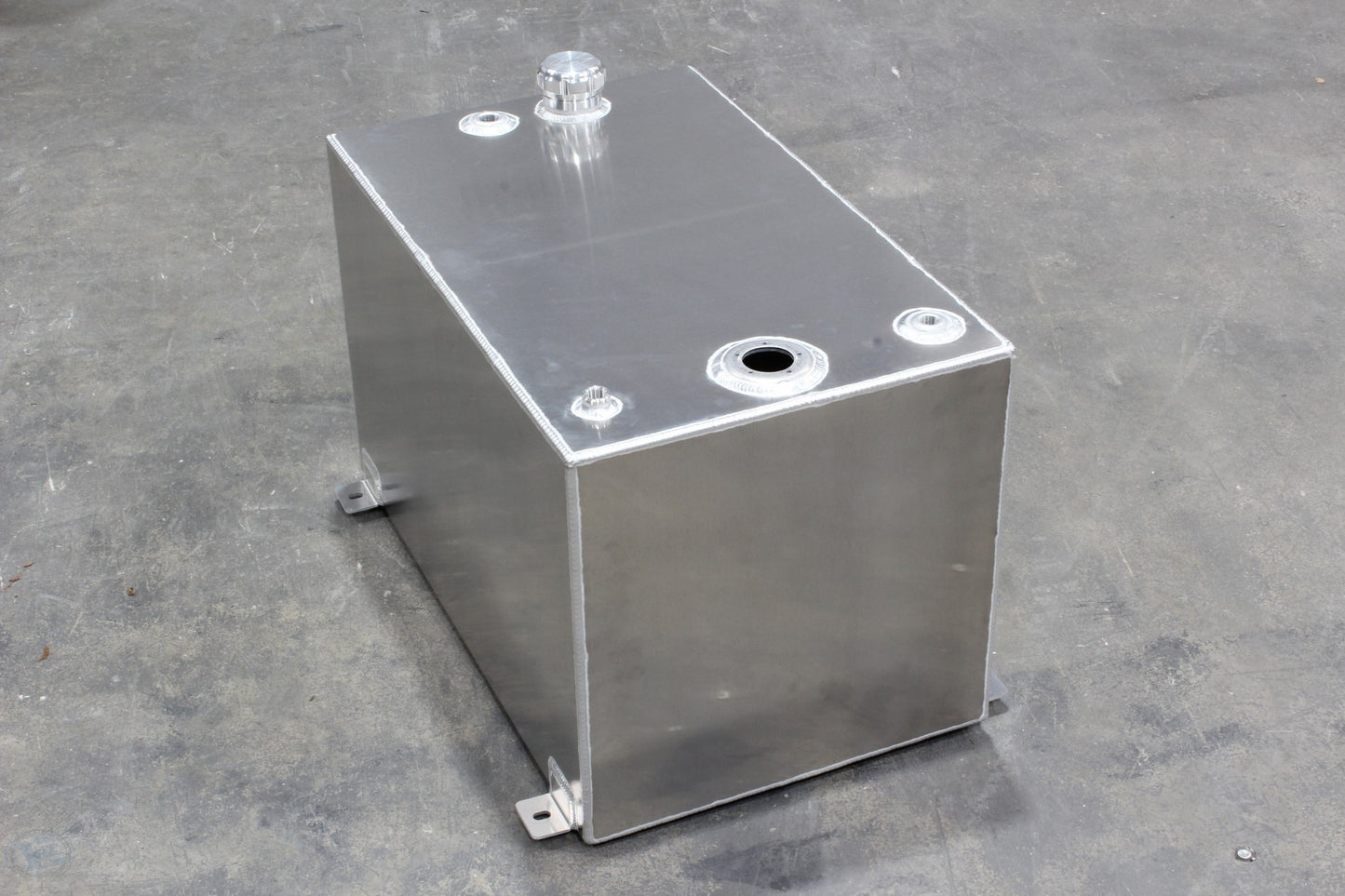

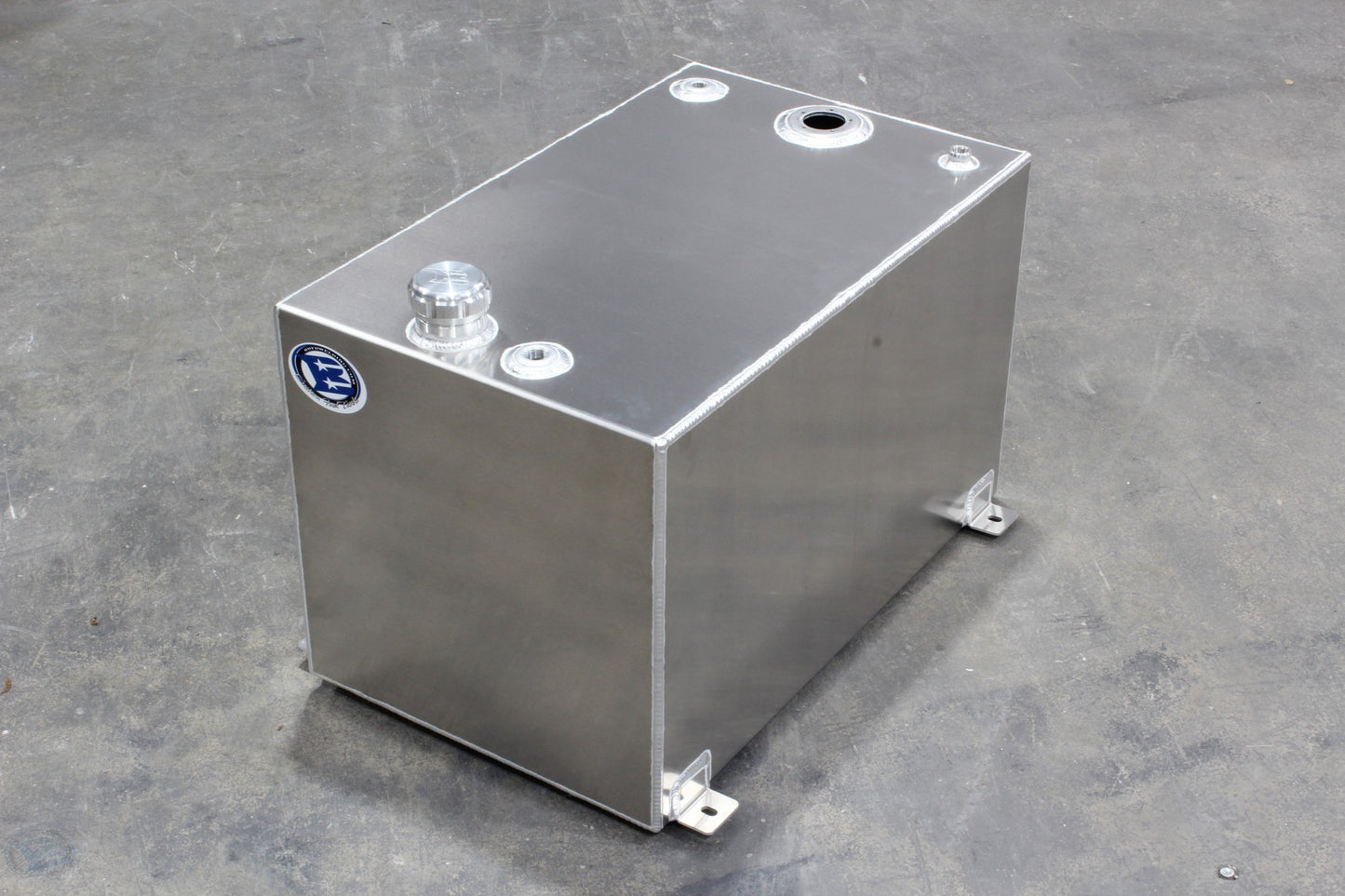

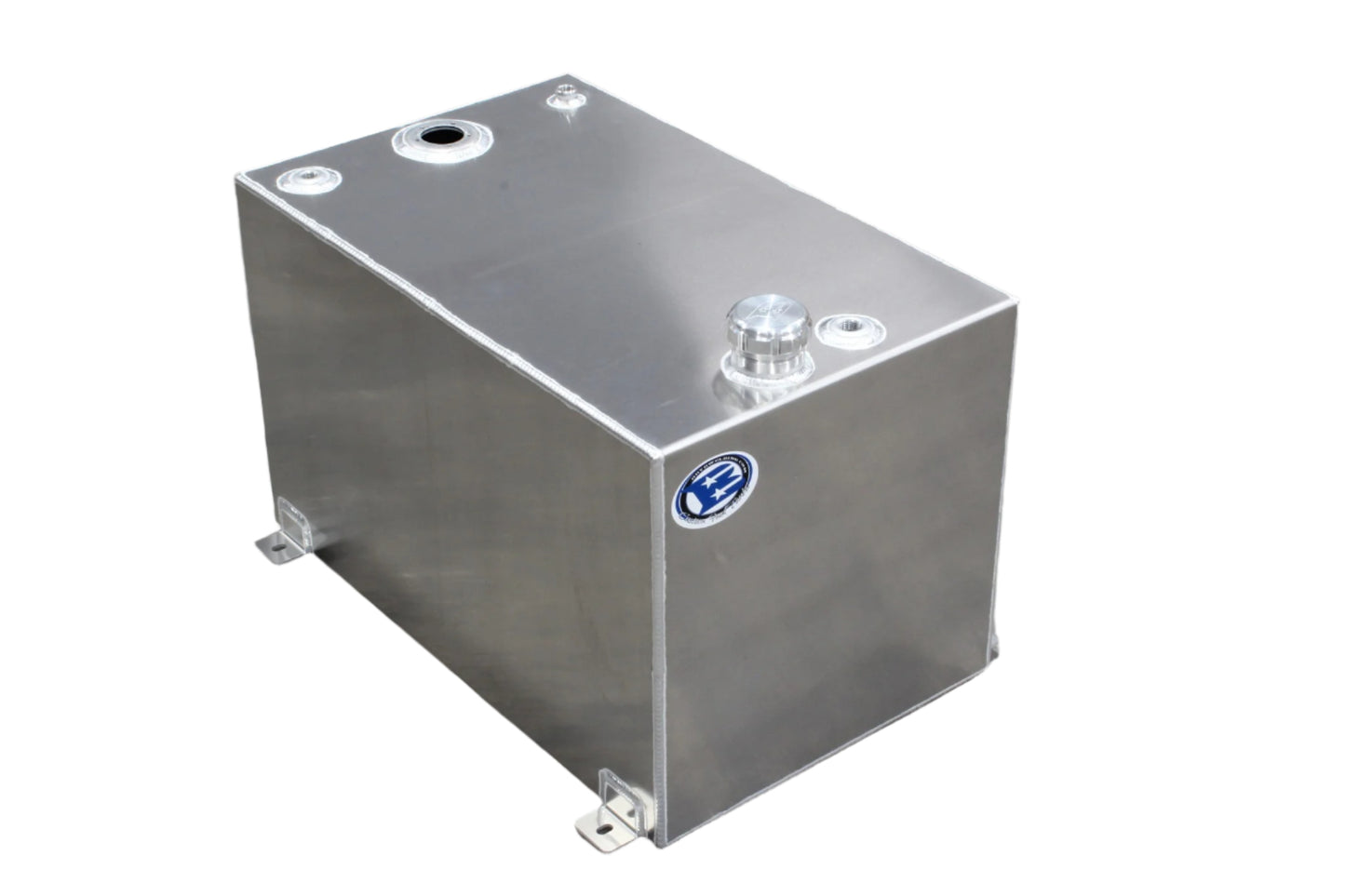

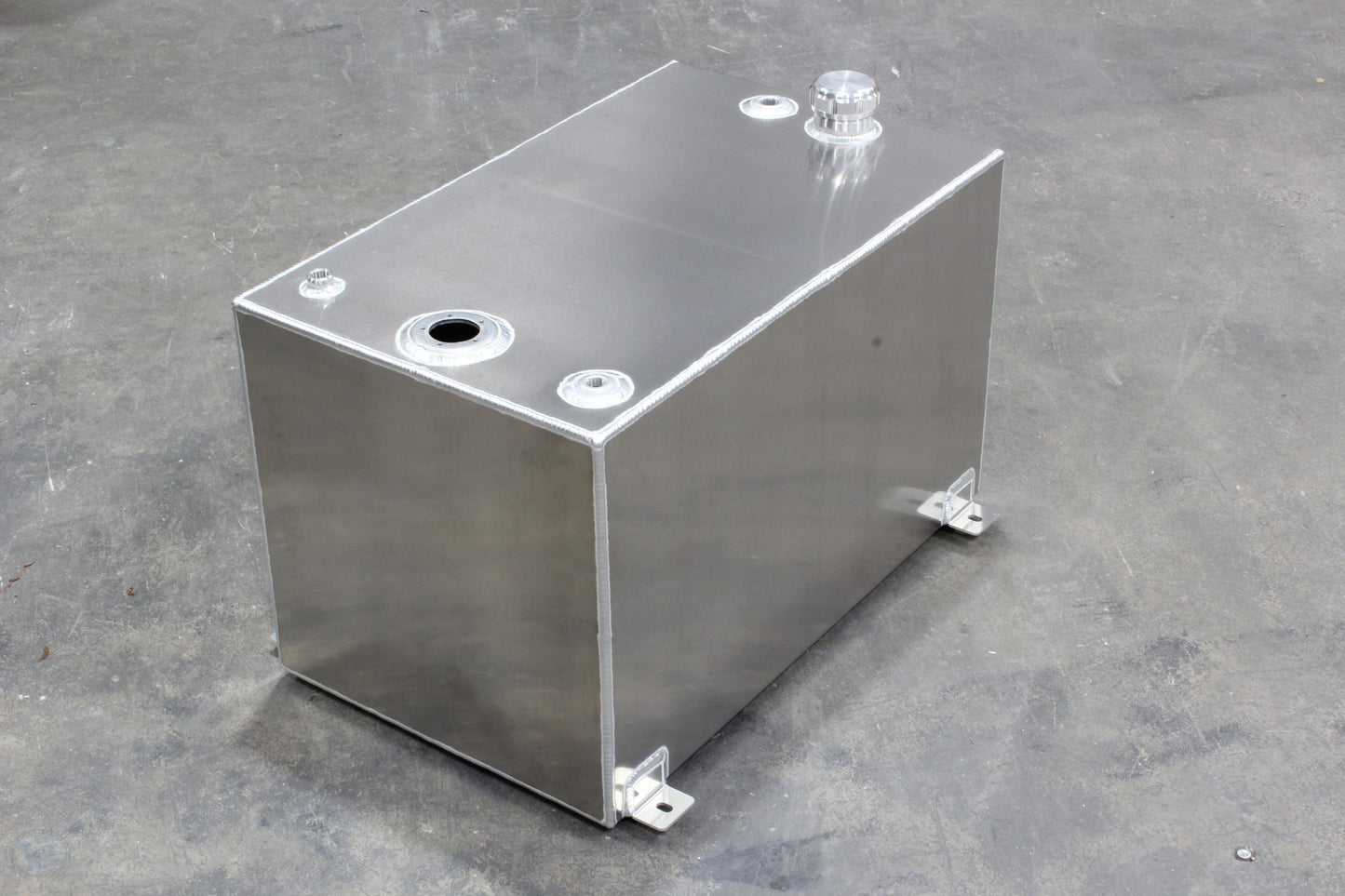

26 Gallon 26x16x16 Aluminum Tank

26 Gallon 26x16x16 Aluminum Tank

Availibilty : Made To Order Ships in 2-4 Weeks

SKU:11020

Regular price $403.70
Regular price $0.00 Sale price $403.70
Sale Sold out
Shipping calculated at checkout.

SEE BANNER FOR CURRENT LEAD TIMES

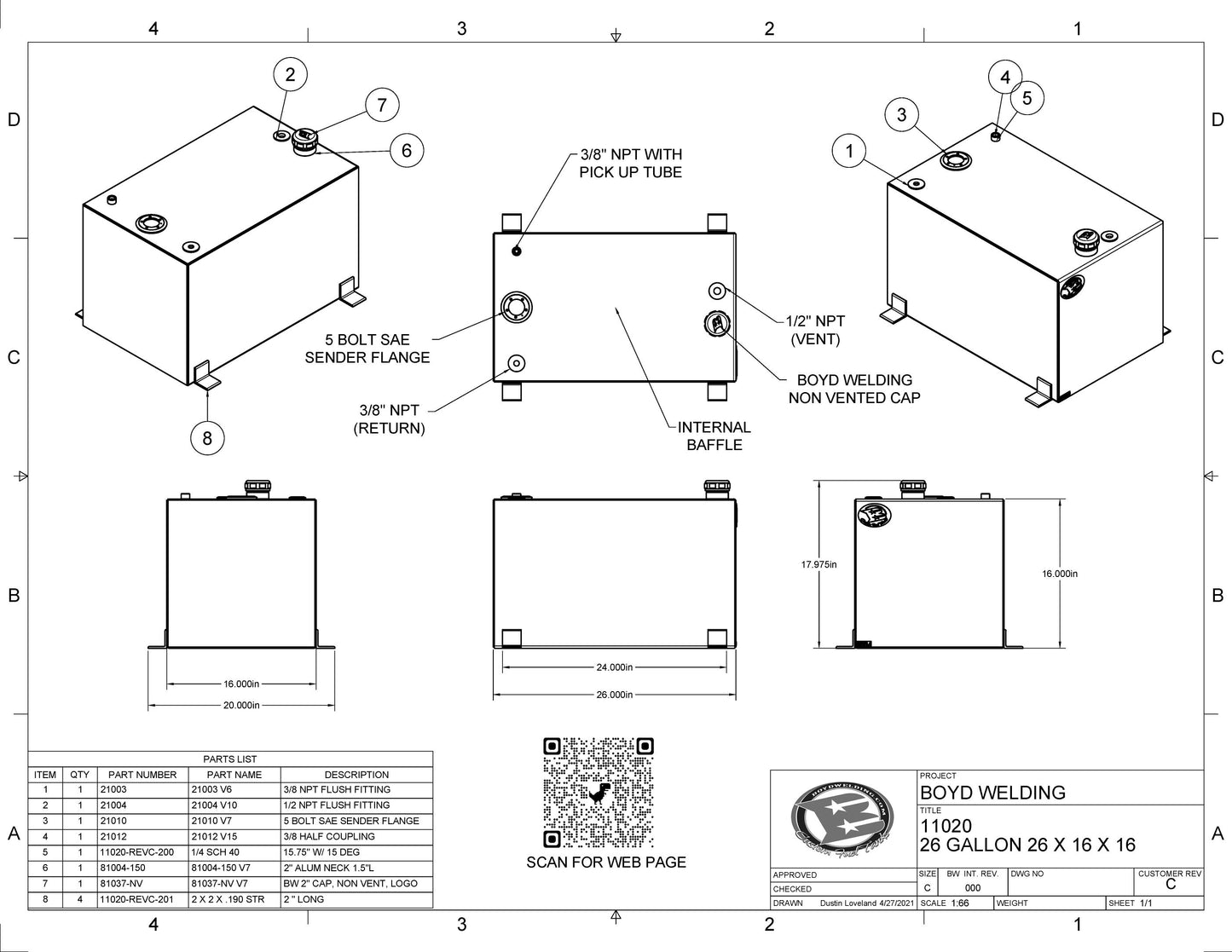

Tank Dimensions: 26 x 16 x 16
Tank Thickness:  1/8'
Material Grade: 5052 Mill Aluminum
Approx Weight: 38 lbs
Tank Baffles: Yes (1)

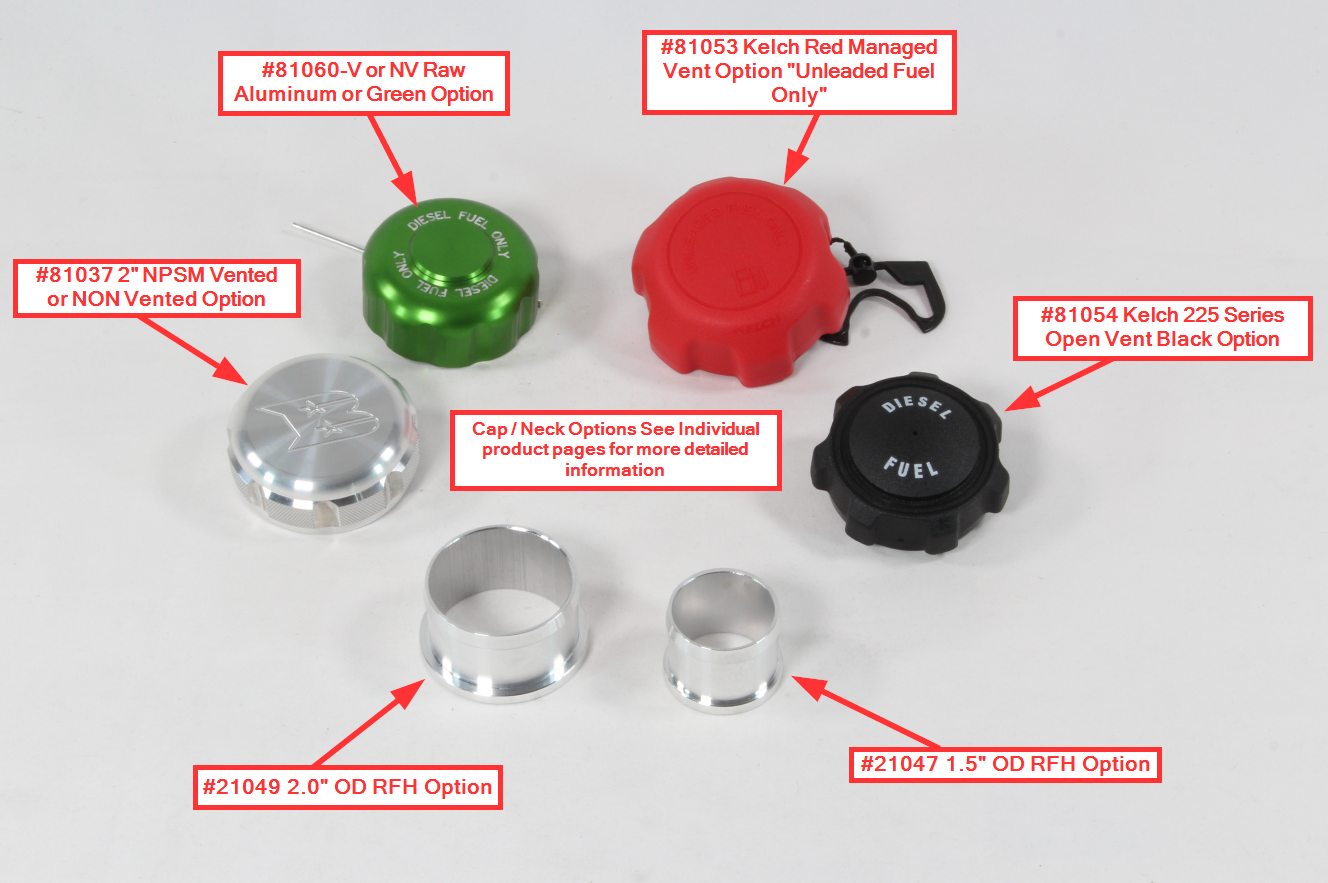

Fill Cap: Non Vented Cap

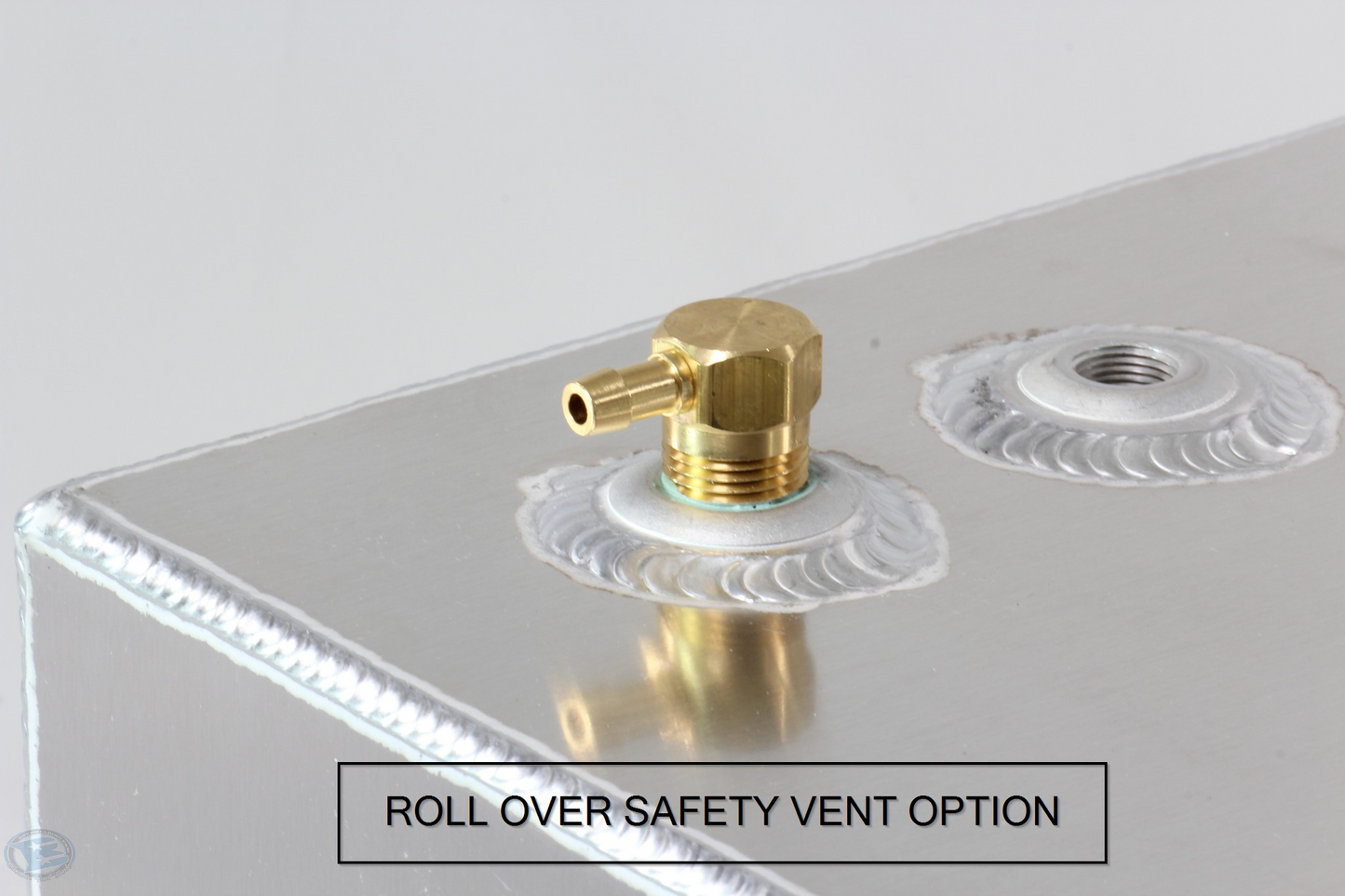

Vent: 1/2" NPT
Draw: 3/8" NPT Pickup Tube
Return: 3/8" NPT
Drain: No

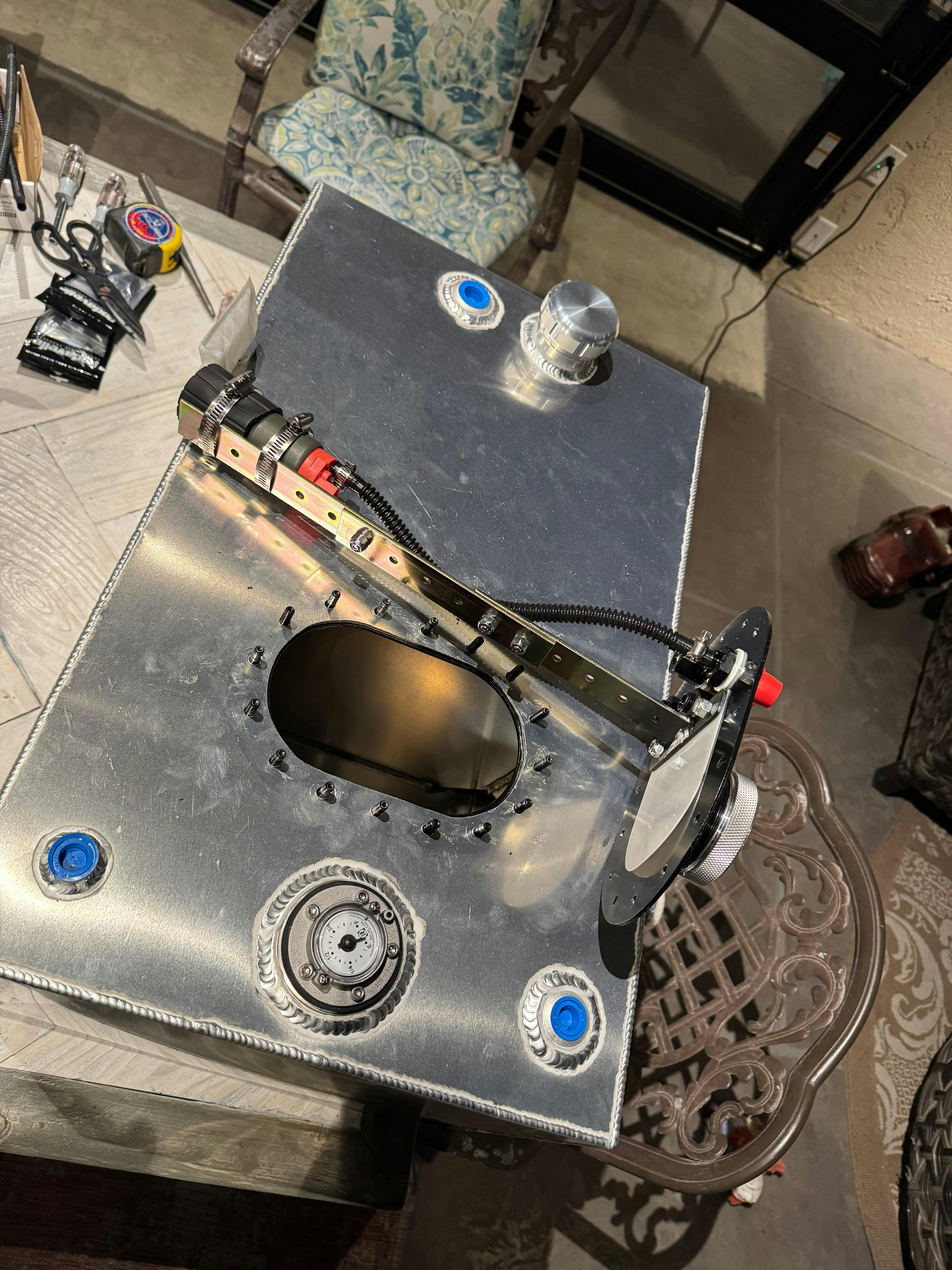

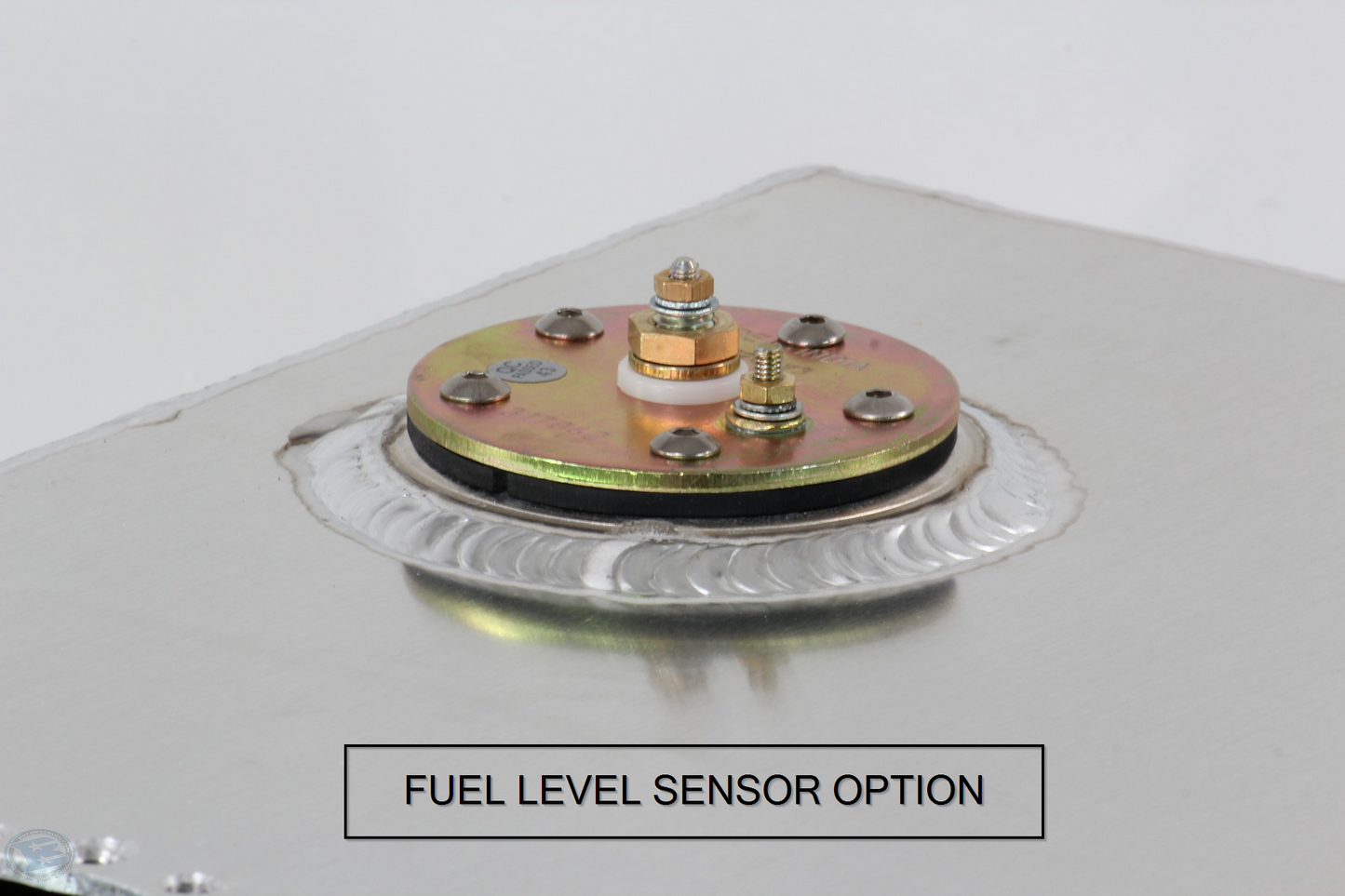

Sending Unit Flange: Yes
Mounting Tabs: (4) 2 x 2" long

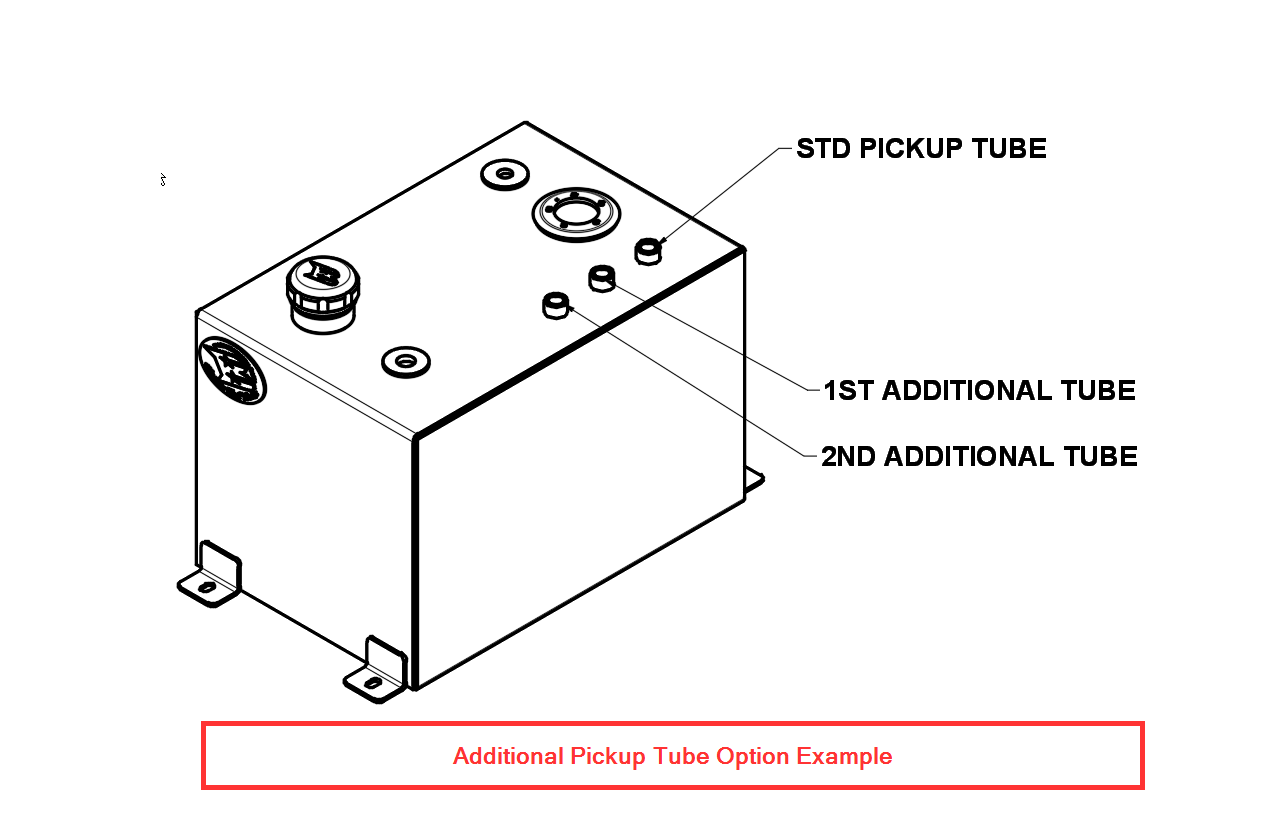

This tank comes standard with 1 pickup tube installed.  You can add ADDITIONAL pickup tubes via the option drop downs.  If you don't need additional pickup tubes then you choose "no additional pickup tube"

You will need to supply threaded fittings, plugs and hardware to complete your install based on your unique application.

View full details

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Thomas Baggaley
Corporate President

I have been an electrical contractor in California for over 35 years and have had dealings with thousands of vendors and companies. My recent dealing with Boyd Welding LLC far exceeded my experiences and expectations. Boyd Welding Products are the top of the line quality at a fair price! Shipping and delivery was quicker than expected. I will recommend Boyd Welding LLC to anyone who could use their products, look no further this is the Company you want to deal with. Thomas Baggaley President Delta Energy

A
Adam Clark
Blown away

Excellent looking tank at a great price! I'll definitely be buying some smaller tanks for my pulling tractors in the near future!

A
Andrew Bianchini
Awesome Tank

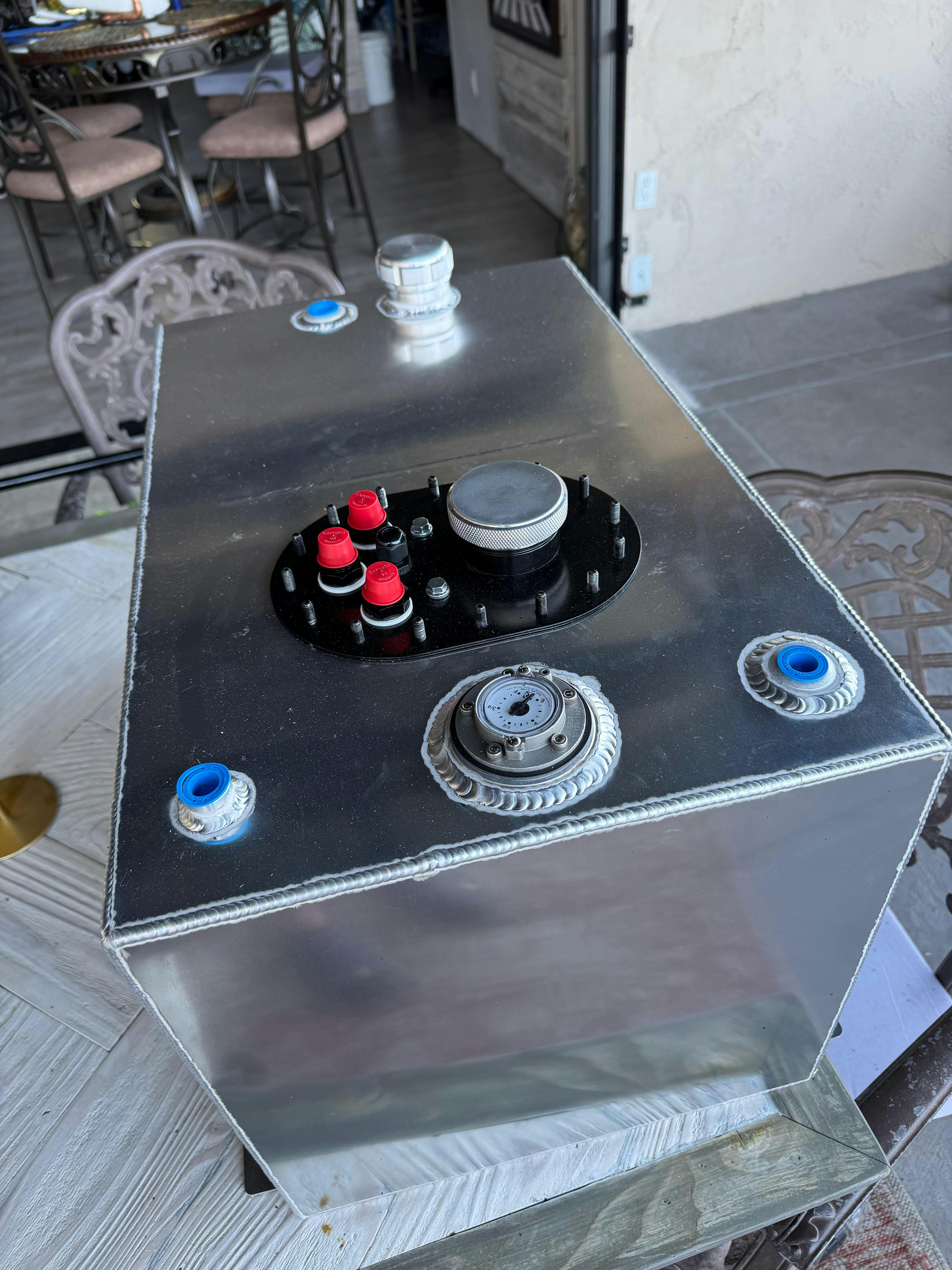

Got the 26gal w an extra pickup. The welds are pristine, gauge and cap are quality. Overall, really impressed. Get you one!
